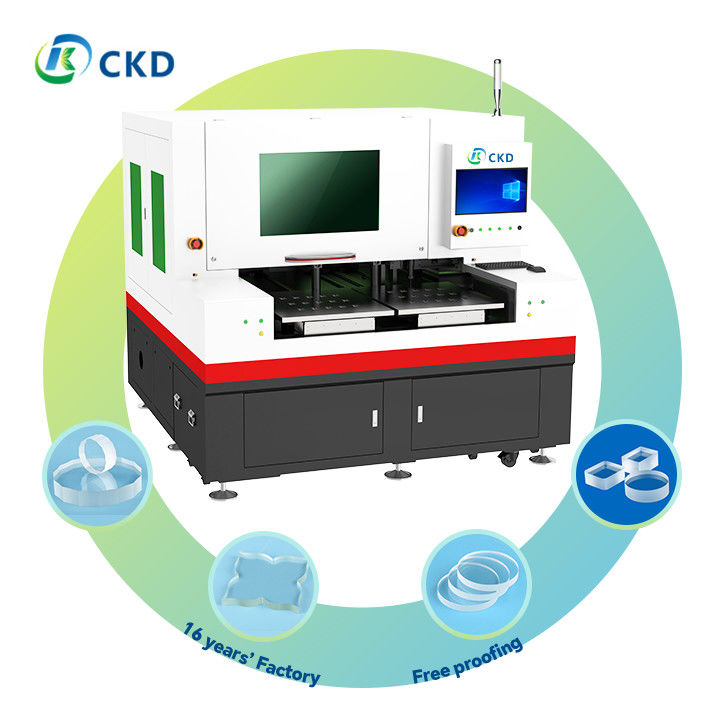

Maximize Your Glass Cutting Capabilities with Our Laser Glass Cutting Machine  To Accuracy±0.01mm

Maximize Your Glass Cutting Capabilities with Our Laser Glass Cutting Machine To Accuracy±0.01mm

  • Cutting Speed
    Adjustable From 0-500mm/s
  • Noise Level
    Operating Noise Level Is 70dB, With A Built-in Silencing System, Suitable For Low-noise Environments.
  • Working Frequency
    50HZ/60HZ
  • Work Size
    610*700mm X 2 Customizable
  • Key Selling Points
    Ultra Fast Picesecond
  • Splitting Laser Source
    RFC02 (Radio Frequency CO2) - RFC02 10.6μm 150W (options: 250W/350W) - 150W(250W/350W) 1-100kHz Water Cooling
  • Cutting Width
    0.03-25mm
  • Splitting laser source Wavelength
    10.6µm
  • Machine Size
    1700mm*1700mm*1960mm
  • Speed
    0-500mm/s
  • Power
    90W
  • Operating Environment
    Around 26 degrees Celsius
  • Cooling System
    Water Cooling
  • Cutting Area
    60*90cm*2
  • Control System
    CNC
  • Safety Protection
    High Safety
  • Chipping
    ≤200μm
  • Laser
    80W
  • Positioning Accuracy
    ±2μm
  • Wavelength
    1064nm
  • Software
    LaserCut
  • Service Life
    Long Life
  • Applied Range
    Glass
  • Place of Origin
    China
  • Фирменное наименование
    CKD
  • Сертификация
    ISO CE
  • Model Number
    CKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
  • Minimum Order Quantity
    1
  • Цена
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    25-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    60sets per month

Maximize Your Glass Cutting Capabilities with Our Laser Glass Cutting Machine To Accuracy±0.01mm

Product Description:

The High Precision Laser Cutting Machine is an essential tool in the glassware industry, providing precise cutting and splitting capabilities for various types of glass materials. The Glass Cutting And Splitting Machine (All-in-One) is equipped with advanced drive motor technology, utilizing XY Linear Motor + Optical Grating Scale to ensure high accuracy and efficiency in the cutting process.
Designed for a wide range of industries, the laser cutting machine is suitable for cutting and splitting glass materials such as Optical Glass, K9 Glass, Ultra-thin Glass, High-borosilicate Glass, Quartz Glass, Sanitary Ware Glass, Automotive Glass, Car Windshield, Photovoltaic Glass, Home Appliance Glass, Panel Lighting Glass, Architectural Decoration, and Bathroom Glass. With its versatility, this machine can cater to the needs of different sectors including the glassware industry, houseware industry, vehicle industry, new energy sector, home appliance sector, and real estate industry.
The drive motor of the Laser Glass Cutting Machine features XY Linear Motor + Grating Ruler technology, allowing for smooth and precise movements during the cutting process. This ensures that the machine can handle various cutting tasks with accuracy and consistency. The cutting area of the machine comes in different sizes including 400mm*500mm, 600*700mm, and 600*900mm, providing flexibility for different cutting requirements.
With its ability to perform intricate cuts and splits, the Stained glass cutting machine is ideal for applications that require precision and attention to detail. Whether it's cutting irregular shapes or intricate designs, this machine can deliver consistent and high-quality results every time. The Laser Glass Cutting Machine is a reliable and efficient tool for businesses looking to enhance their glass cutting capabilities and achieve superior cutting quality.



Features:

  • Product Name: Laser Glass Cutting Machine
  • Features:
    • Impulse Frequency: 1-100kHz
    • Dimension: 2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
    • Cooling System: Water Cooling
    • Linear Guide Brand: TPI
    • Drive Motor: XY Linear Motor + Optical Grating Scale
  • Keywords: Thick glass laser cutting machine, Small glass laser cutting machine, colored glass cutting machine


Technical Parameters:

Technical ParameterSpecification
Splitting Laser SourceRFC02 (Radio Frequency CO2) - RFC02 10.6μm 150W (options: 250W/350W) - 150W(250W/350W) 1-100kHz Water Cooling
Work Size610*700mm X 2 Customizable
Cutting ThicknessUltra-clear Glass Single Cut ≤19mm, Blue Glass Double Cut ≤19mm
Dimension2150mm × 2080mm × 1960mm / 2550mm × 2080mm × 1960mm
Repeatability±1.5μm
Warranty and ServiceComes With A 2-year Warranty Covering Major Components Like The Laser Source And Control System. 24/7 Technical Support With Remote And On-site Service Options.
Splitting laser source Power150W (options: 250W/350W)
Key Selling PointsUltra Fast Picosecond
Energy ConsumptionStandby Power Is About 500W, And Average Power Consumption During Cutting Is 2.5kW. Energy-efficient With Eco-friendly Modes.
Drive MotorXY Linear Motor + Optical Grating Scale


Applications:

Product Application Occasions and Scenarios for the Fiber Laser Cutting Machine:
The CKD Fiber Laser Cutting Machine is a versatile and efficient tool suitable for a wide range of applications. With models such as CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, and many more, this machine is perfect for various cutting needs.
One of the key application scenarios for this product is in the glass industry. The CKD Fiber Laser Cutting Machine is ideal for cutting small glass pieces with precision and speed. Whether you need to cut glass for architectural purposes, automotive applications, or decorative elements, this machine delivers high-quality results.
With a cutting thickness range of 0.03~25mm and an impulse frequency of 1-100khz, the CKD Fiber Laser Cutting Machine ensures accurate and clean cuts every time. The chipping level is kept to a minimum, at ≤5μm, guaranteeing a smooth finish on the glass surface.
Originating from China, this machine is certified with ISO and CE, ensuring its quality and reliability. The minimum order quantity is 1, and the price is negotiable, making it accessible for businesses of all sizes. The packaging details include wooden vacuum packaging for secure transport.
Delivery time ranges from 25-45 days, and payment terms accepted are L/C and T/T. With a supply ability of 60 sets per month, customers can rely on timely delivery of their orders.
To maintain the machine's performance, it is recommended to perform optical alignment every 200 hours and coolant replacement every 1000 hours. Regular remote diagnostics and software updates are available to ensure the machine operates at its best.



Customization:

Product Customization Services:
Brand Name: CKD
Model Number: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E
Place of Origin: China
Certification: ISO, CE
Minimum Order Quantity: 1
Price: Negotiated
Packaging Details: Wooden vacuum packaging
Delivery Time: 25-45 days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Positioning Accuracy: ±2μm
Cutting Thickness: Ultra-clear Glass Single Cut ≤19mm, Blue Glass Double Cut ≤19mm
Warranty and Service: Comes With A 2-year Warranty Covering Major Components Like The Laser Source And Control System. 24/7 Technical Support With Remote And On-site Service Options.
Splitting laser source Power: 150W (options: 250W/350W)



Support and Services:

Our Laser Glass Cutting Machine product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced technicians is available to provide assistance with machine setup, operation, and troubleshooting. Additionally, we offer training programs to help users maximize the capabilities of the machine.
Our service offerings include regular maintenance programs to keep the machine in top condition, as well as prompt repair services in case of any issues. We also provide software updates to enhance functionality and compatibility with the latest technologies.
Rest assured that our technical support and services are designed to meet the needs of our customers and ensure a seamless experience with our Laser Glass Cutting Machine product.



Packing and Shipping:

Product Packaging:
Our Laser Glass Cutting Machine is carefully packaged to ensure it reaches you in perfect condition. It is secured in a sturdy wooden crate with ample cushioning material to prevent any damage during transit.
Shipping:
We offer worldwide shipping for our Laser Glass Cutting Machine. Once your order is processed, it will be shipped within 2 business days. You will receive a tracking number to monitor the status of your delivery. Shipping times may vary depending on your location.
